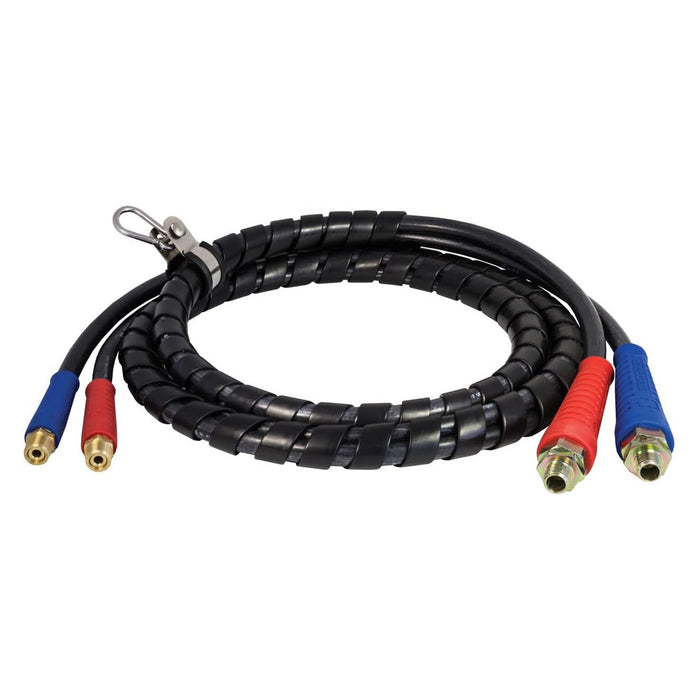

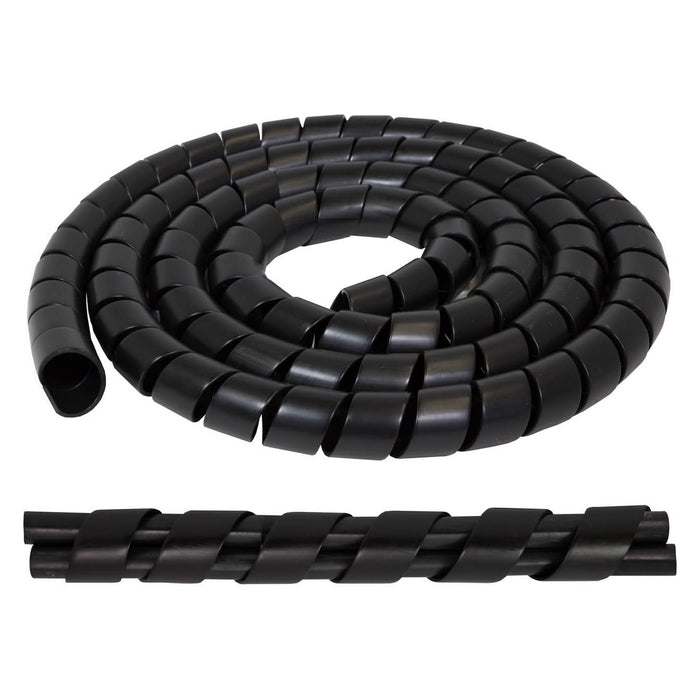

Tectran Air Line Brake Assembly w/FLEXGrip-HD Black Hose & Spiral Wrap | Tractor-Trailer Hook-Up Line | 1/2" NPT Fittings | Quick Installation | 12' Length

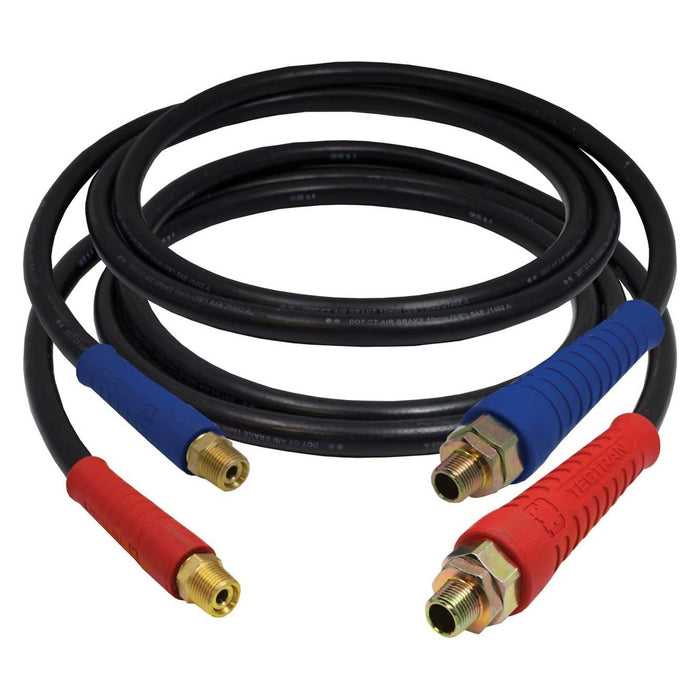

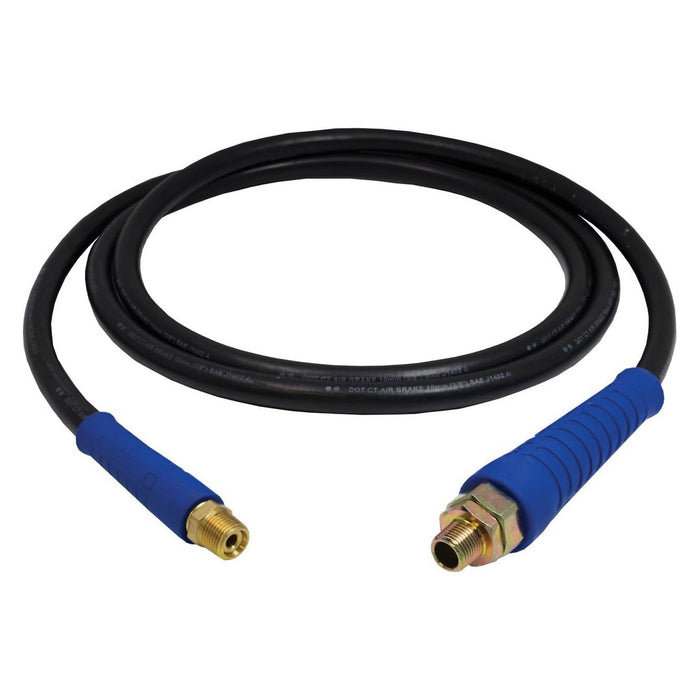

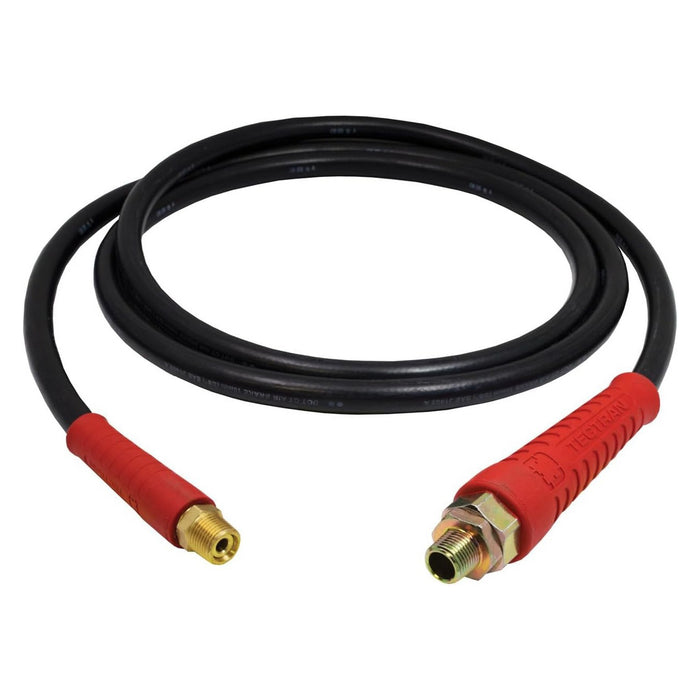

Air Line Hose Assemblies with FLEXGrip-HD Black Hose

• Designed to withstand application extremes - The uniform dual-braided design consists of interwoven spirals providing greater flexibility and improved twist resistance compared to other spiral designs
• 3/8" hose I.D - 1/2" end fittings
• Layers of the hose wall are fully bonded to enhance kink resistance, enabling tighter bends
• Provides flexible air-connection from frame to axle or between tractor and trailer where exposed to flexing, pulling or impact
• The rugged elastomeric hose cover is resistant to gasoline, diesel fuel, oil and commonly used road and cleaning chemicals
• UV and ozone resistant
• Designed for operating pressures up to 225 psi
• Operating temperature of -40F to +200F (-40C to +93C)
• Meets or exceeds SAE J1402 - Type A - DOT FMVSS No. 106 - Brake Hoses, 49 CFR 571.106

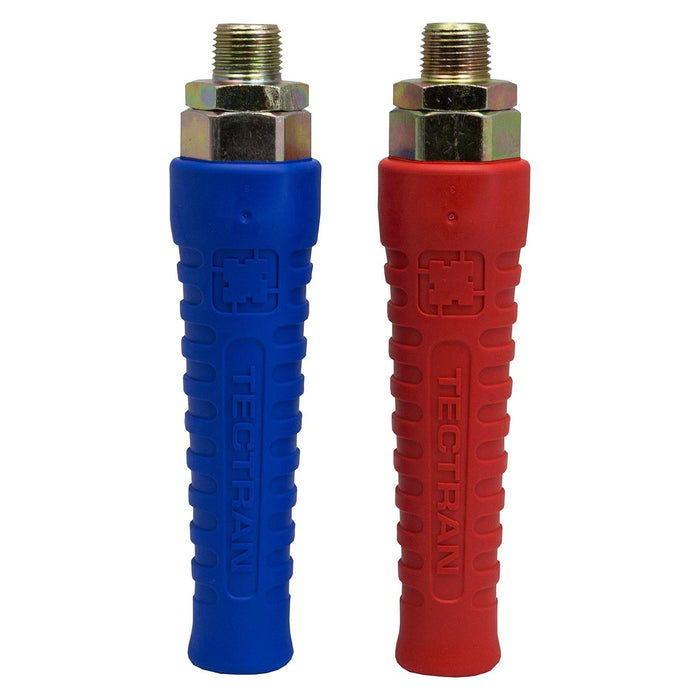

FLEXGRIP-HD - A thermo-elastomeric gladhand grip located on the trailer leads. (Patent Pending)

• Our most robust grip for ultimate kink protection!
• Corrosion resistant all brass fittings
• Tapered grip flexes with airline during tight turns for advanced kink protection
• Reinforced, thicker rail at the hose end of the grip prevents tearing and improves kink resistance
• Color-coded grip helps to minimize incorrect tractor/trailer connections
• FLEXGrip-HD Thread 1/2

Bend Restrictors A thermo-elastomeric reinforcement guard located on the tractor leads (Patent Pending)

• Non-corrosive, unlike typical spring guards
• Color-coded to help minimize incorrect tractor/trailer connections
• Prevent kinking during tight turns

Key Product Features

• FLEXGRIP PROTECTION - These tapered grips flex with air lines during tight turns providing the industry's most advanced kink protection.
• RUGGED MATERIAL - Cover is resistant to gasoline
• diesel fuel
• oil and commonly used road and cleaning chemicals providing additional levels of durability and reliability
• DUAL BRAIDED - Consists of interwoven spirals providing greater flexibility and improved twist resistance compared to other spiral designs.
• BEND RESTRICTORS - A thermo-elastomeric reinforcement guard located on the tractor leads assist in preventing kinking during tight turns.
• D.O.T. STANDARD COMPLIANT - Meets or exceeds DOT FMVSS 106; SAE J1402 - Type A; 49 CFR 571.106 requirements ensuring that safety and reliability comes first.
